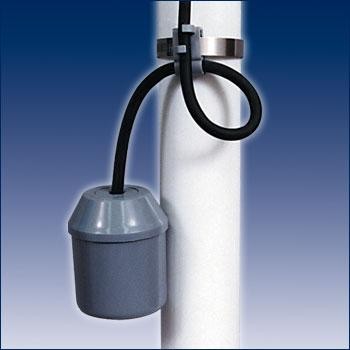

SJE Rhombus Junior Super Single Pump Float Switch 10Ft (Normally Open/Pump Down) - 1012434

More Views

SJE Rhombus Junior Super Single Pump Float Switch 10Ft (Normally Open/Pump Down) - 1012434
$29.99
  • Buy 2 for $29.39 each and save 3%
  • Buy 5 for $28.79 each and save 5%
  • Buy 10 for $28.19 each and save 7%

Availability: In stock

Junior Super Single®


Mercury-Activated, Wide-Angle Pump Switch


Pump switches provide automatic pump control.


The Junior Super Single® pump switch is designed to directly control septic pumps and other pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC in non-potable water, water and sewage applications.


SJE Rhombus Part # 1012434

Description

Details

Although the Junior Super Single® pump switch is not sensitive to rotation, it is affected by turbulence and should be mounted in a non-turbulent location.  It is not recommended for use with motor contactors or relays because the motor contactor or relay may experience chattering.  A Super Single® or Double Float® pump switch would operate more efficiently in these installations.

Features:

  • Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC
  • Adjustable pumping range of 6.5 - 19 inches (16.5 - 48 cm)

Junior Super Single® Pump Switch Diagrams

Options:

  • For pump up or pump down applications as specified by part number
  • With a 120 VAC or 230 VAC piggy-back plug
  • Without a plug for direct wiring in 120 VAC or 230 VAC applications
  • In standard cable lengths of 10, 15, 20, or 30 feet (3, 5, 6, or 10 meters) - longer lengths available

UL Recognized, CSA Certified

Three Year Limited Warranty

Specifications:

CABLE:
Flexible 16 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE)

FLOAT:
2.81 inches diameter x  3.42 inches long (7.14 x 8.68 cm) high impact, corrosion resistance, PVC housing for use in sewage and water up to 140oF (60oC)

MERCURY SWITCH:
Mercury-to-metal contacts, hermetically sealed in a steel capsule

ELECTRICAL:
120 VAC 50/60 Hz Single Phase:
Maximum Pump Running Current: 13 amps
Maximum Pump Starting Current: 40 amps
Recommended Pump HP: 1/2 HP or less

230 VAC 50/60 Hz Single Phase:
Maximum Pump Running Current: 8 amps
Maximum Pump Starting Current: 20 amps
Recommended Pump HP: 1 HP or less

NOTE: This switch must be used with pumps that provide integral thermal overload protection.

Additional Information

Additional Information

Manufacturer SJE Rhombus
Attachment View File SJE Rhombus Mercury to Mechanical Float Switch Conversion Chart Size: (42.14 KB)
Attachment View File SJE Junior Super Single Specifications Size: (114.09 KB)
