SJE Rhombus Tank Alert XT

More Views

SJE Rhombus Tank Alert XT
$158.00
  • Buy 2 for $154.84 each and save 2%
  • Buy 5 for $151.68 each and save 4%
  • Buy 10 for $148.52 each and save 6%

Availability: In stock

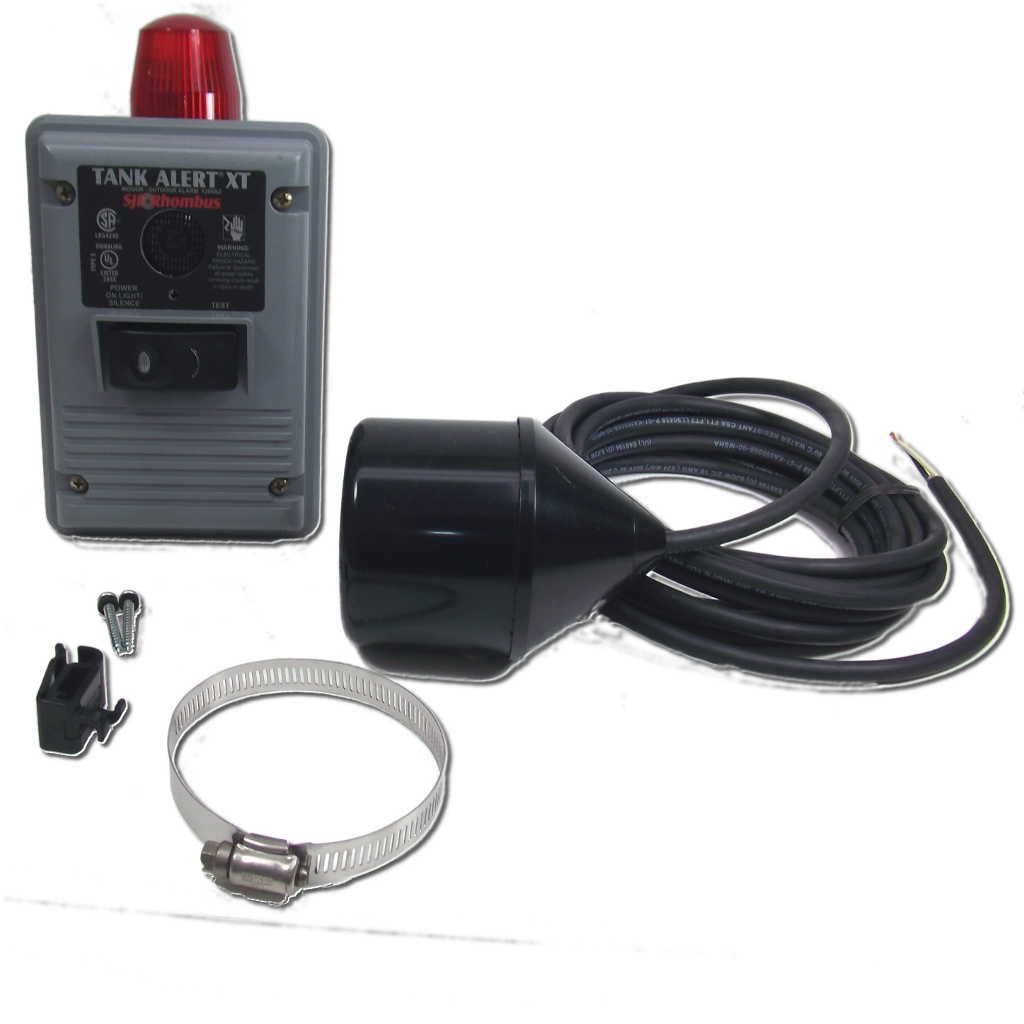

SJE Rhombus Tank Alert XT


This alram system monitors liquid levels in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural and other non-potable water applications.


The Tank Alert XT indoor/outdoor alarm serves as a high level alarm. the alarm horn sounds and the red beacon illuminates when a potentially threatening liquid level condition occures. A "power on" light on the switch indicates power to the alarm panel.

Description

Details

Tank Alert® XT (120 VAC)

Indoor/Outdoor Tank Alarm with Auto Reset

Tank Alert® alarms provide audio/visual warning of potential threatening liquid level conditions.

The Tank Alert® XT indoor/outdoor alarm system provides audio/visual warning of potential threatening liquid level conditions in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural and other non-potable water applications.

If an alarm condition occurs, the horn sounds and red alarm beacon activates.  The horn can be turned off, but the alarm beacon remains on until the condition is remedied.  Once the condition is cleared the alarm will automatically reset.

Features:

  • Enclosure meets Type 3R water-tight standard
  • Automatic alarm reset
  • Horn silence switch and alarm test switch
  • Alarm horn sounds at 85 decibels at 3 meters (10 feet)
  • Alarm system (when installed on a separate circuit) operates even if pump circuit fails

Options:

  • Alternate float switch models for high or low level warning
  • Auxiliary dry normally open contacts for easy attachment of remote devices
  • Pre-mounted terminal block so enclosure can be used as a junction box for splicing pump, pump switch, and pump power.  Meets NEC standard for junction boxes.
  • 1.8 meter (6 foot) power cord and liquid-tight connectors

UL Listed, CSA Certified

**Includes 15 foot Sensor Float® control switch **

Specifications

VOLTAGE:
120 VAC, 50/60 Hz
, 7 watts max. (alarm condition)

ALARM ENCLOSURE:
16.51 x 11.43 x 7.62 cm (
6.5 x 4.5 x 3.0 inches), indoor/outdoor weatherproof thermoplastic which meets Type 3R water-tight standard

ALARM HORN:
85 decibles at 3 meters (10 feet) meets Type 3R water-tight standard as installed by factory

ALARM BEACON:
Meets Type 3R water-tight standard as installed by factory

TEST/SILENCE SWITCH:
Certified to IP66 and IP68 standards

AUXILIARY ALARM CONTACTS (Optional):
120 VAC. 5 amps max., 50/60 Hz

PRE-MOUNTED TERMINAL BLOCK (Optional):
20 amps, 120/230 VAC

POWER CORD (Optional):
1.8 meter (6 foot) cord with 120 VAC plug

FLOAT SWITCH:
Sensor Float® control switch with mounting clamp
Cable: 4.57 meters (15 feet), flexible 18 gauge, 2 conductor (UL) SJOW, water-resistant (CPE)
Float: 8.58 cm diameter x 11.56 cm long (3.38 inches x 4.55 inches), high impact, corrosion resistant PVC housing for use in sewage and water up to 60oC (
140oF)
Switch: Hermetically sealed steel capsule features mercury-to-mercury contacts
Maximum line impedance for initiating devide: 100 ohms



Additional Information

Additional Information

Manufacturer SJE Rhombus
Attachment View File SJE Tank Alert XT Specifications Size: (168.91 KB)
