SPI Bio Pump Control Panel No Timer - 50B224

SPI Bio Pump Control Panel No Timer - 50B224

More Views

SPI Bio Pump Control Panel No Timer - 50B224
$285.00

Availability: In stock

This control panel is designed for use on aerobic treatment systems. Controls the air pump and submersible pump and gives alarms for air pump failure and high water level.
OR
Description

Details

Pump Control Panel for Septic and Aerobic Systems No Timer

SPI Bio 50B224-PFD

Product Features

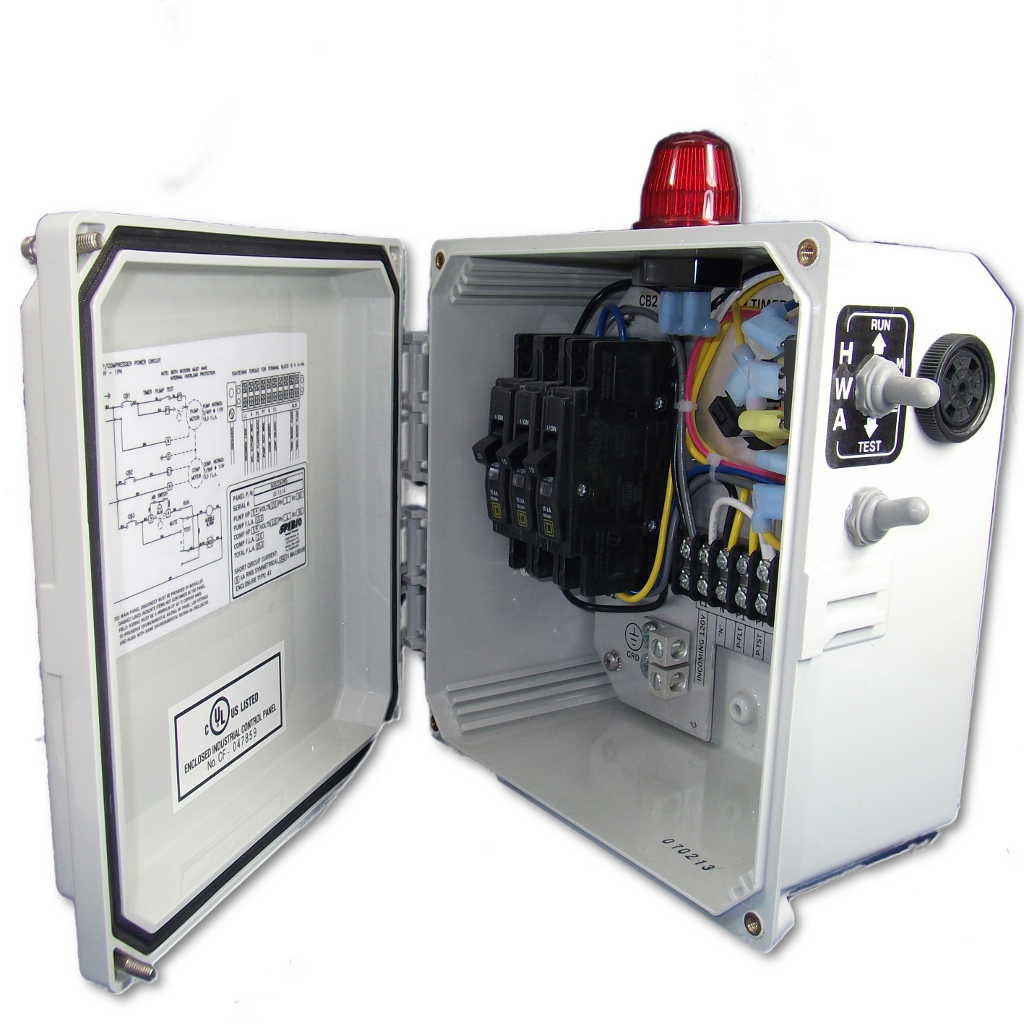

  •     Circuit breakers for pump, compressor, & alarm circuits.
  •     External run/test/mute switch standard.
  •     Externally Mounted Audible Alarm.
  •     360 degree red high water alarm light
  •     Piezo Alarm.
  •     8X8X4 enclosure.
  •     Color coded internal wiring.
  • 1 Light Demand Control Panel;
  • 8X8X4 Enclosed Screw Cover
  • 3 Breakers
  • Internal Air Pressure Switch
  • External Toggle, Light and Buzzer-Pump Test
  • No timer
  • Floats Sold Separately

Specifications

Pump HP: 3/4
Volts: 115
PH: 1
HZ: 60

Pump F.L.A: 15.0

Comp HP: 1/6
Volts: 115
PH: 1
Hz: 60

Comp F.L.A: 2.0

Total F.L.A: 25.0

Additional Information

Additional Information

Manufacturer SPI
Attachment View File Pressure Switch Specs Size: (823.51 KB)
Attachment View File 50B224-PFD - Sales Sheet Size: (202.89 KB)
Reviews
Product Reviews
Number of reviews : 2
Average rating : 4.5 /5
P. Greg
  the 28/02/2023
4/ 5
Controller works well, but the original one rusted up in less than 2 years. Need to be sure all conduits going into it are sealed up.
A. Anonymous
  the 27/02/2018
5/ 5
Haven't installed this item yet. Everything checks out on the wiring digram.
