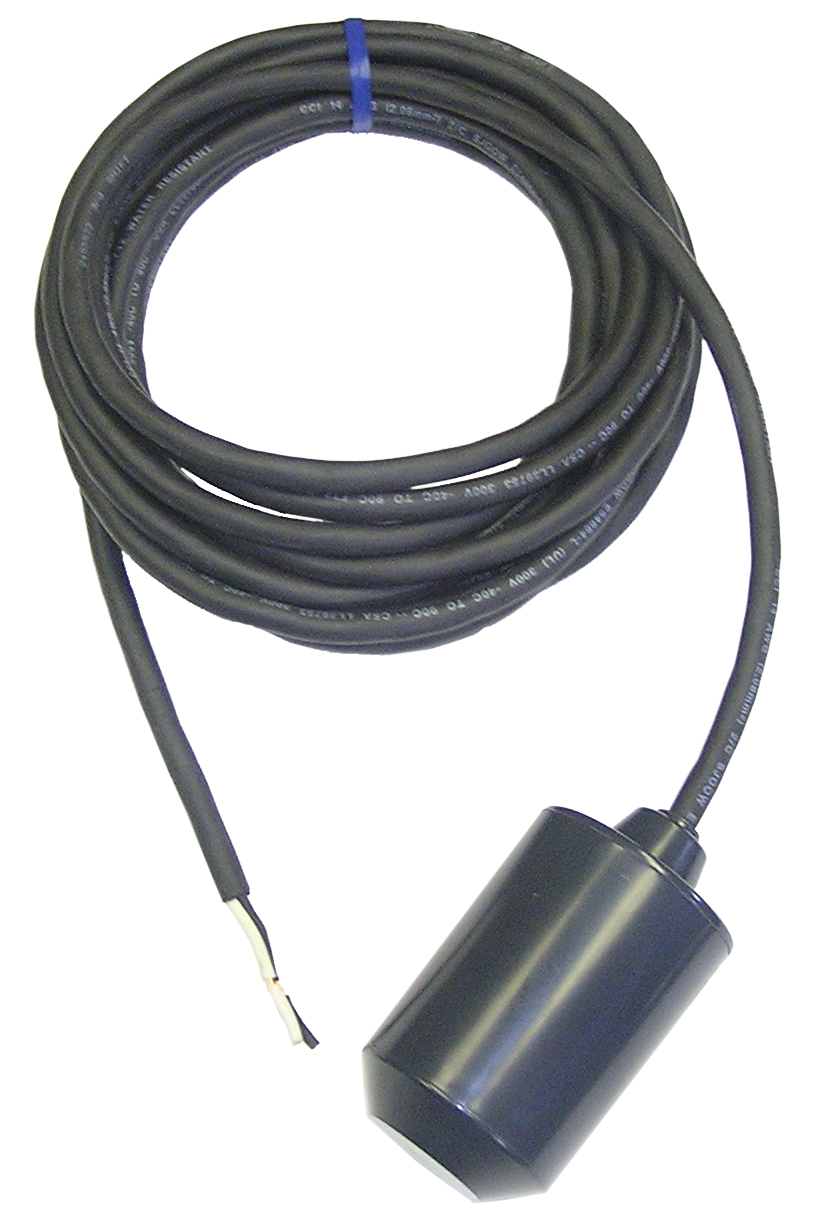

MDI Heavy Duty Mechanical Float Switch – Normally Open – 30 Foot - (MDI HF2OU3000 TC-2 B)

More Views

MDI Heavy Duty Mechanical Float Switch – Normally Open – 30 Foot - (MDI HF2OU3000 TC-2 B)

Availability: In stock

MDI (Mercury Displacement Industries) is manufacturer of high quality float switches. They are located in Michigan USA. MDI has been manufacturing high quality float switches for over 40 years. MDI float switches are made in the USA and are rated for millions of operations. All MDI basic units are UL, CSA, and CE approved. If you are looking for high quality float switches at an affordable price, MDI has the float for you.




  • 1 – MDI Float Switch
  • 1 – TC-2 Tether Clamp With 3 ½ Inch Max Pipe Clamp

Float Specifications:

  • Part Number: HF2OU3000 TC-2 B
  • Operation: Normally Open
  • Operating Angle: Wide Angle
  • Float Rating: 1 HP @ 120VAC – 2 HP @ 240VAC
  • Electrical Ratings: 15 Amps @ 120/240 VAC
  • Cord Length: 30ft
  • Starting Amps (LRA): 96
  • Plug: No Plug
  • Switch Type: Mechanical
  • Float Material: ABS
  • Cord Gauge: 14-2 AWG
  • Operating Temperature: 180F/82C

Operation Explanation: Normally Open
Normally Open floats have an OPEN circuit when the float is in its normal position (Not Floating). Meaning the device that is hooked up to the float will turn ON when it is floating and turn OFF when it stops floating.

Additional Information

Additional Information

Manufacturer MDI
Attachment View File MDI HF2OU3000 TC-2 B Size: (54.76 KB)
Product Reviews
Number of reviews : 3
Average rating : 4.7 /5
A. Anonymous
  the 31/12/2021
5/ 5
Works great ...looking for many years of use.
A. Anonymous
  the 14/06/2019
4/ 5
Id give it five stars if it came with a current through plug rather than just a pigtail
A. Anonymous
  the 25/03/2019
5/ 5
worked really well
