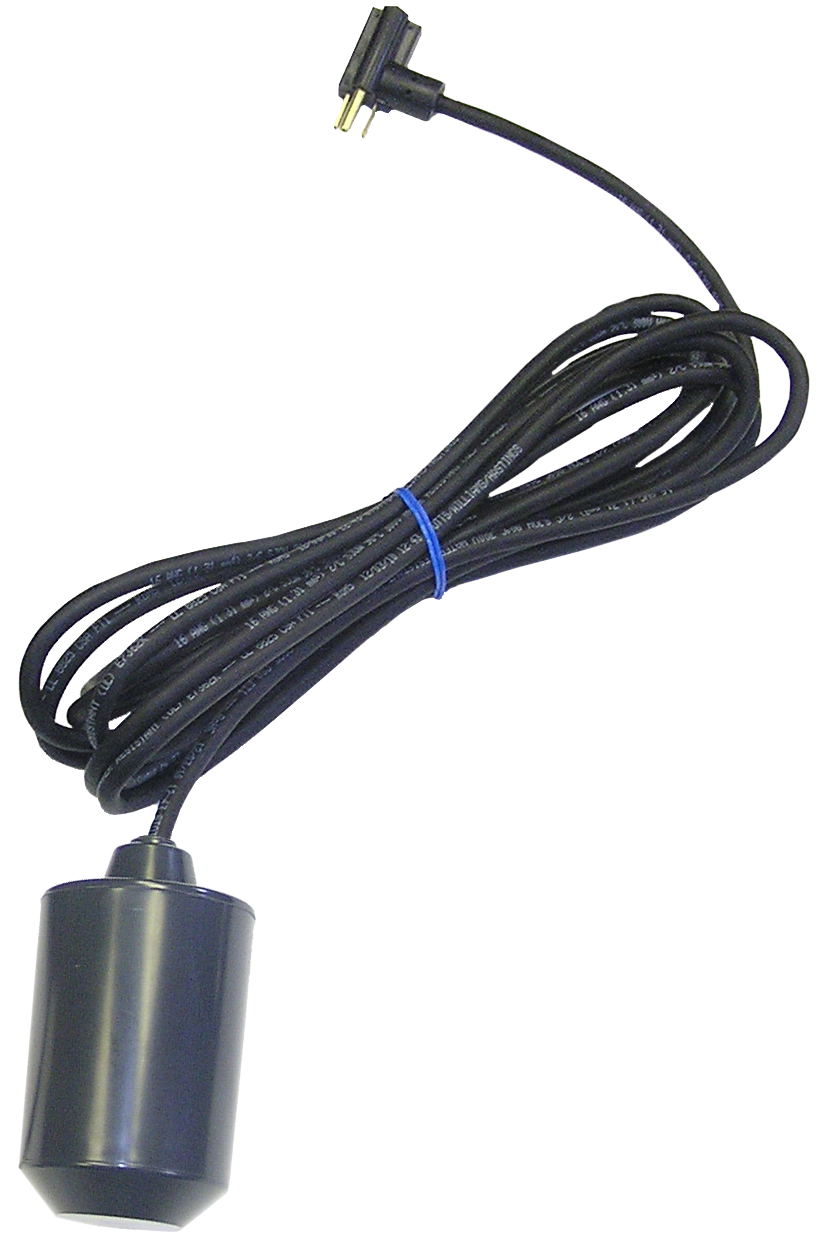

MDI Heavy Duty Mechanical Float Switch With Piggyback Plug – Normally Open – 30 Foot - (MDI HF2OU30R1 TC-2 B)

MDI Heavy Duty Mechanical Float Switch With Piggyback Plug – Normally Open – 30 Foot - (MDI HF2OU30R1 TC-2 B)

More Views

$70.30

Availability: In stock

MDI (Mercury Displacement Industries) is manufacturer of high quality float switches. They are located in Michigan USA. MDI has been manufacturing high quality float switches for over 40 years. MDI float switches are made in the USA and are rated for millions of operations. All MDI basic units are UL, CSA, and CE approved. If you are looking for high quality float switches at an affordable price, MDI has the float for you.

Qty:

Description

Details

Includes:

1 – MDI Float Switch
1 – TC-2 Tether Clamp With 3 ½ Inch Max Pipe Clamp

Float Specifications:

Part Number: HF2OU30R1 TC-2 B
Operation: Normally Open
Operating Angle: Wide Angle
Float Rating: 1 HP @ 120VAC – 2 HP @ 240VAC
Electrical Ratings: 15 Amps @ 120/240 VAC
Cord Length: 30ft
Starting Amps (LRA): 96
Plug: 120V PiggyBack Plug
Switch Type: Mechanical
Float Material: ABS
Cord Gauge: 14-2 AWG
Operating Temperature: 180F/82C

Operation Explanation: Normally Open
Normally Open floats have an OPEN circuit when the float is in its normal position (Not Floating). Meaning the device that is hooked up to the float will turn ON when it is floating and turn OFF when it stops floating.

Additional Information

Additional Information

Manufacturer	MDI
Attachment	MDI HF2OU30R1 TC-2 B Size: (23.78 KB)
