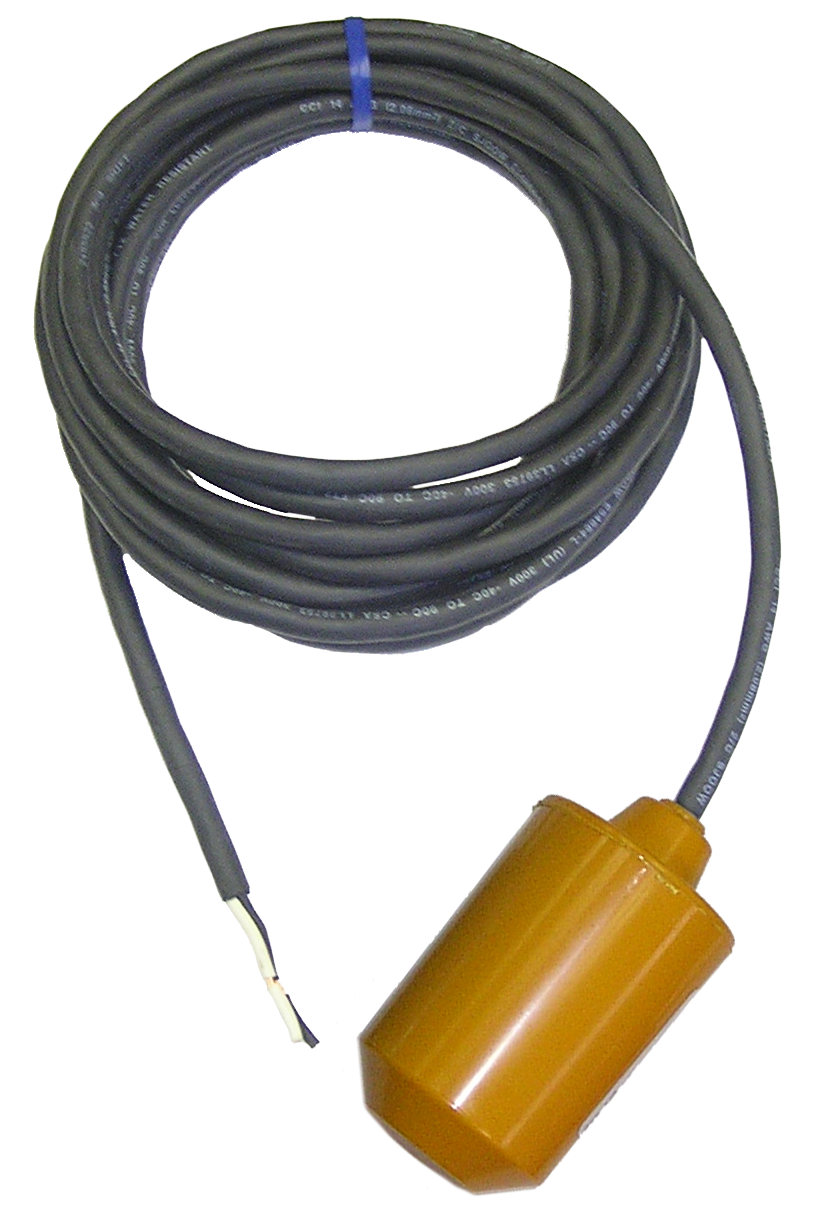

MDI Pump Duty Mechanical Float Switch – Normally Closed – 30 Foot - (MDI GY2CW3000 TC-2 B)

MDI Pump Duty Mechanical Float Switch – Normally Closed – 30 Foot - (MDI GY2CW3000 TC-2 B)

More Views

$58.70

Availability: In stock

MDI (Mercury Displacement Industries) is manufacturer of high quality float switches. They are located in Michigan USA. MDI has been manufacturing high quality float switches for over 40 years. MDI float switches are made in the USA and are rated for millions of operations. All MDI basic units are UL, CSA, and CE approved. If you are looking for high quality float switches at an affordable price, MDI has the float for you.

Qty:

Description

Details

Includes:

1 – MDI Float Switch
1 – TC-2 Tether Clamp With 3 ½ Inch Max Pipe Clamp

Float Specifications:

Part Number: GY2CW3000 TC-2 B
Operation: Normally Closed
Operating Angle: Wide Angle
Float Rating: ½ HP
Electrical Ratings: 13 Amps @ 120/240 VAC
Cord Length: 30ft
Starting Amps (LRA): 58.8
Plug: No Plug
Switch Type: Mechanical
Float Material: ABS
Cord Gauge: 16-2 AWG
Operating Temperature: 180F/82C

Operation Explanation: Normally Closed
Normally Closed floats have a CLOSED circuit when the float is in its normal position (Not Floating). Meaning the device that is hooked up to the float will turn OFF when it is floating and turn ON when it stops floating.

Additional Information

Additional Information

Manufacturer	MDI
Attachment	MDI GY2CW3000 TC-2 B Size: (29.93 KB)
