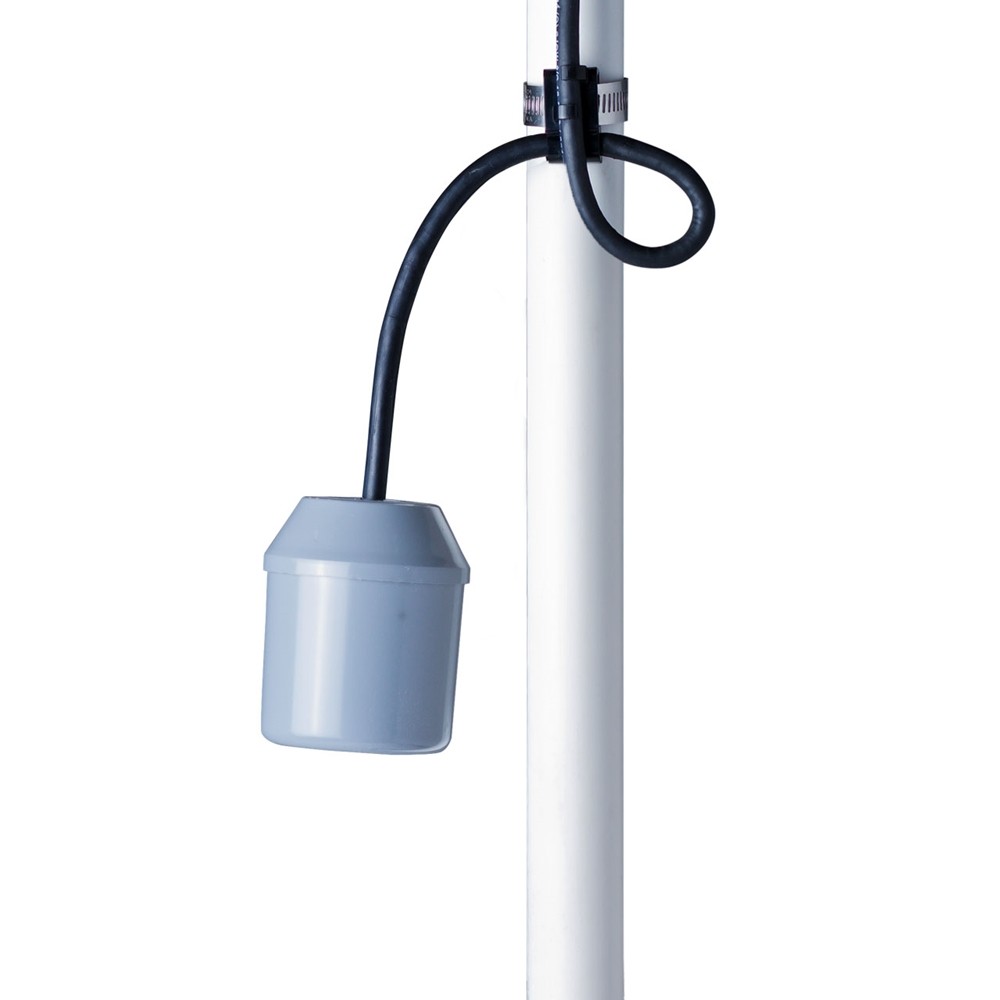

SJE Rhombus Junior Super Single - Pump Switch 10ft - W/O Plug (Normally Closed / Pump Up) - 1001923 - 10JSUWOP

More Views

SJE Rhombus Junior Super Single - Pump Switch 10ft - W/O Plug (Normally Closed / Pump Up) - 1001923 - 10JSUWOP
$59.95

Availability: In stock

Junior Super Single®


Mercury-Activated, Wide-Angle Pump Switch


Pump switches provide automatic pump control.


The Junior Super Single® pump switch is designed to directly control pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC in non-potable water, water and sewage applications.

Description

Details

Although the Junior Super Single® pump switch is not sensitive to rotation, it is affected by turbulence and should be mounted in a non-turbulent location.  It is not recommended for use with motor contactors or relays because the motor contactor or relay may experience chattering.  A Super Single® or Double Float® pump switch would operate more efficiently in these installations.



Junior Super Single®



Features:



  • Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC
  • Adjustable pumping range of 6.5 - 19 inches (16.5 - 48 cm)
  • Includes standard mounting clamp and boxed packaging



Junior Super Single® Pump Switch Diagrams



NOTE: The Diagram above shows a PUMP DOWN model. The SJE 1001923 Is a PUMP UP Model, so it operates opposite of the diagram above. If you are looking for a PUMP DOWN SJE Junior Super Single, You can find one here:

Options:



  • For pump up applications as specified by part number
  • Without a plug for direct wiring in 120 VAC or 230 VAC applications
  • In standard cable length of 10 feet

UL Recognized, CSA Certified



Junior Super Single®



Specifications:



CABLE:
Flexible 16 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE)



FLOAT:
2.81 inches diameter x  3.42 inches long (7.14 x 8.68 cm) high impact, corrosion resistance, PVC housing for use in sewage and water up to 140oF (60oC)



MERCURY SWITCH:
Mercury-to-metal contacts, hermetically sealed in a steel capsule



ELECTRICAL:
120 VAC 50/60 Hz Single Phase:
Maximum Pump Running Current: 13 amps
Maximum Pump Starting Current: 40 amps
Recommended Pump HP: 1/2 HP or less



230 VAC 50/60 Hz Single Phase:
Maximum Pump Running Current: 8 amps
Maximum Pump Starting Current: 20 amps
Recommended Pump HP: 1 HP or less

NOTE: This switch must be used with pumps that provide integral thermal overload protection.

Additional Information

Additional Information

Manufacturer SJE Rhombus
Attachment View File SJE Rhombus Mercury to Mechanical Float Switch Conversion Chart Size: (42.14 KB)
Attachment View File SJE Junior Super Single Specifications Size: (114.09 KB)
