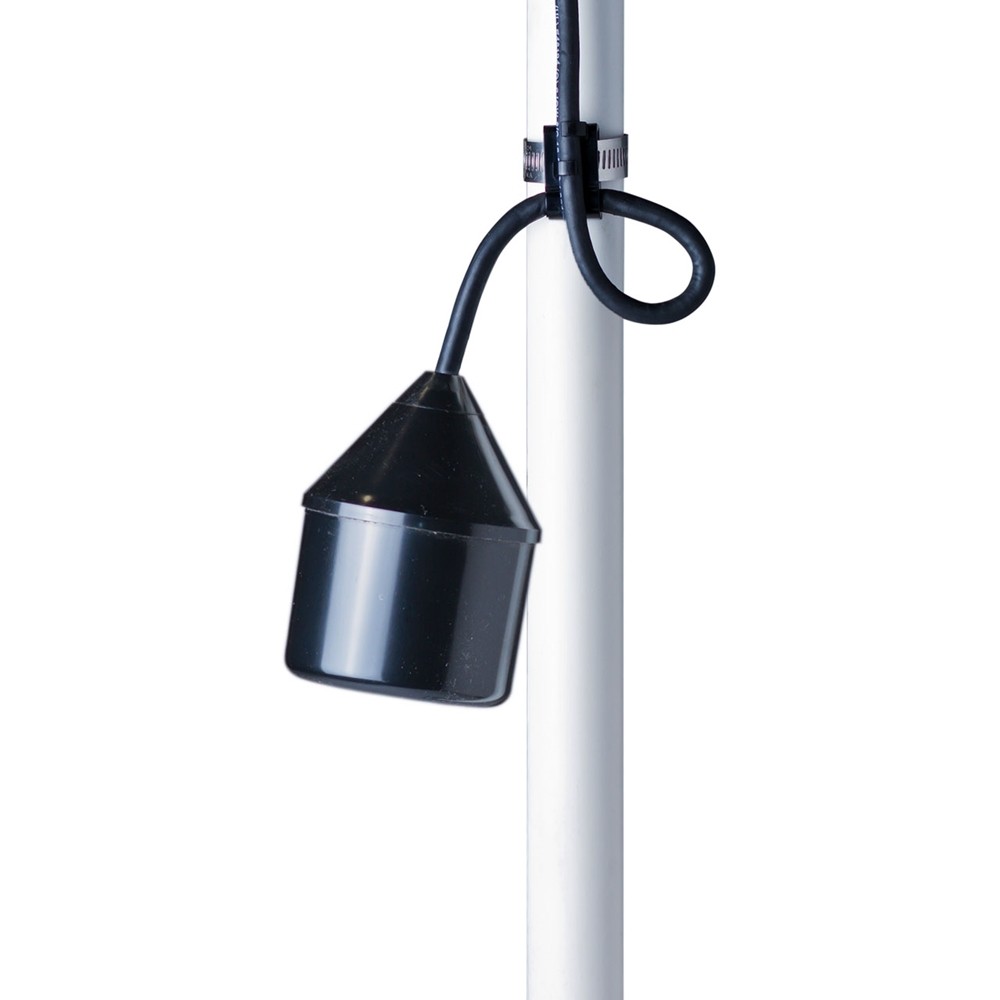

Normally Open Models (high level): The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level and turns off (opens) when the float drops slightly below horizontal.
This switch is not sensitive to rotation and is suitable for use with intrinsically safe circuits. Contact SJE-Rhombus regarding specific intrinsically safe applications.
UL Listed, CSA Certified
Flexible 18 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE) jacket
8.58 cm diameter x 11.56 cm long (3.38 inches diameter x 4.55 inches long) high impact, corrosion resistance, PVC housing for use in sewage and non-potable water up to 60oC (140oF)
MAXIMUM WATER DEPTH:
9 meters (30 feet), 90 kPa (13 PSI)
MERCURY TILT SWITCH:
Single pole, single throw, mercury-to-mercury contacts, hermetically sealed in a steel capsule and epoxy sealed in the float housing
5 amps, 120/230 VAC, 50/60 Hz
|Attachment||Sensor Float Specs Size: (313.49 KB)|
