SPI Observer 100 - Plug-In Pedestal Alarm System - (10A100 / SMD-10)

SPI Observer 100 - Plug-In Pedestal Alarm System - (10A100 / SMD-10)

More Views

SPI Observer 100 - Plug-In Pedestal Alarm System - (10A100 / SMD-10)
$275.00

Availability: In stock

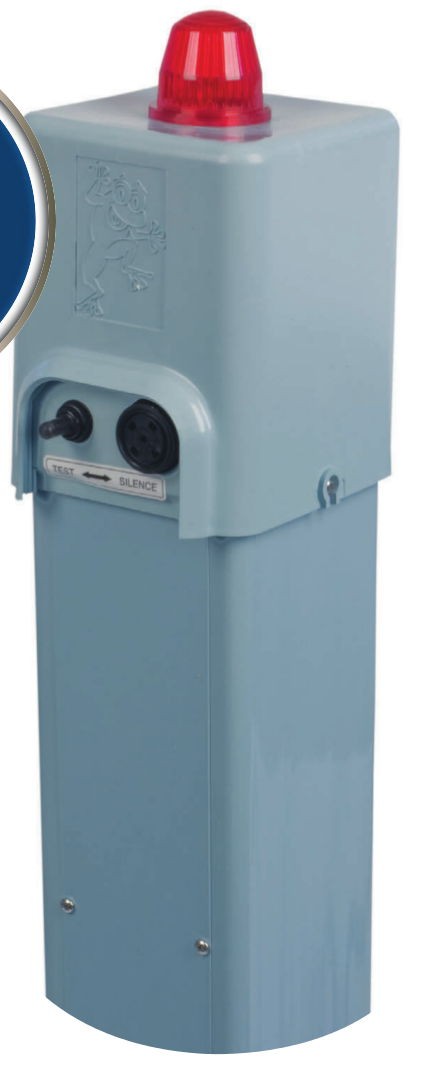

The SPI Observer 100 is a pedestal style high water alarm system. It includes a 20’ mechanical float switch.

OR
Description

Details

Pedestal alarm with large light, alarm auxiliary contacts, audible horn, 120 V pump receptacle, 9 V battery back-up, 20' alarm float, and external silence switch

The Observer 100

  • New low-profile design with external silence switch
  • Easy-to-access cover
  • Rugged water tight enclosure rated for outdoor use
  • 120 / 240 VAC recepticles for plugging in the pump and switch
  • Built-in high water alarm with horn and light (test feature included)
  • 120 VAC with 9 VAC battery back-up alarm, complete with automatic reset
  • Spacious panel designed with 120 VAC or 240 VAC pump power supply and 120 VAC alarm power
  • Mechanical alarm float switch with 20' cord
  • Large access port with gas/liquid tight seal for cord connections
  • Test-normal-silence switch (external)
  • Auxiliary contacts standard
  • Optional push breaker cycle counter, etm
  • Two-year limited warranty

Specifications

  • Enclosure Dimensions: 6" x 6" x 7"
  • Overall Dimensions 6" x 6" x 35"
  • Enclosure: NEMA 3R, UV-protected PVC rated for outdoor use
  • Horn: 85 db at 10'
  • Battery Back-up: 9 VDC for alarm horn
  • Light: 10 watts 120 VAC
  • Receptacle: 120 VAC or 240 VAC
  • Full Load Amps: 12
  • Weight: 11 lbs.
  • Alarm Float: 20' mechanical float (normally open)
  • Pump Voltage 120 / 240 VAC, 60 Hz single phase
  • Alarm Voltage: 120 VAC, 60 Hz single phase
  • Standard Auxiliary Contacts: 240 VAC, 5 amp max resistive/60 Hz
Additional Information

Additional Information

Manufacturer SPI
Attachment View File Observer_100 Installation Manual Size: (127.29 KB)
Attachment View File Observer_100__sales_sheet Size: (n/a)
Reviews
Product Reviews
Number of reviews : 7
Average rating : 3.7 /5
I. Walter
  the 02/09/2022
2/ 5
Did not receive it but got a refund. Still need to get a high water alarm but would have liked to stay with the tower.
A. Anonymous
  the 01/11/2019
1/ 5
Never received
A. Anonymous
  the 24/07/2019
5/ 5
Great product. Had one installed 9 yrs. ago. If it weren't for a lighting strike, it would still be working.
A. Anonymous
  the 14/12/2018
5/ 5
exactly what I wanted and needed--good price
A. Anonymous
  the 16/11/2018
4/ 5
It looks like it's in ok shape and we won't get it installed until the ground thaws.
