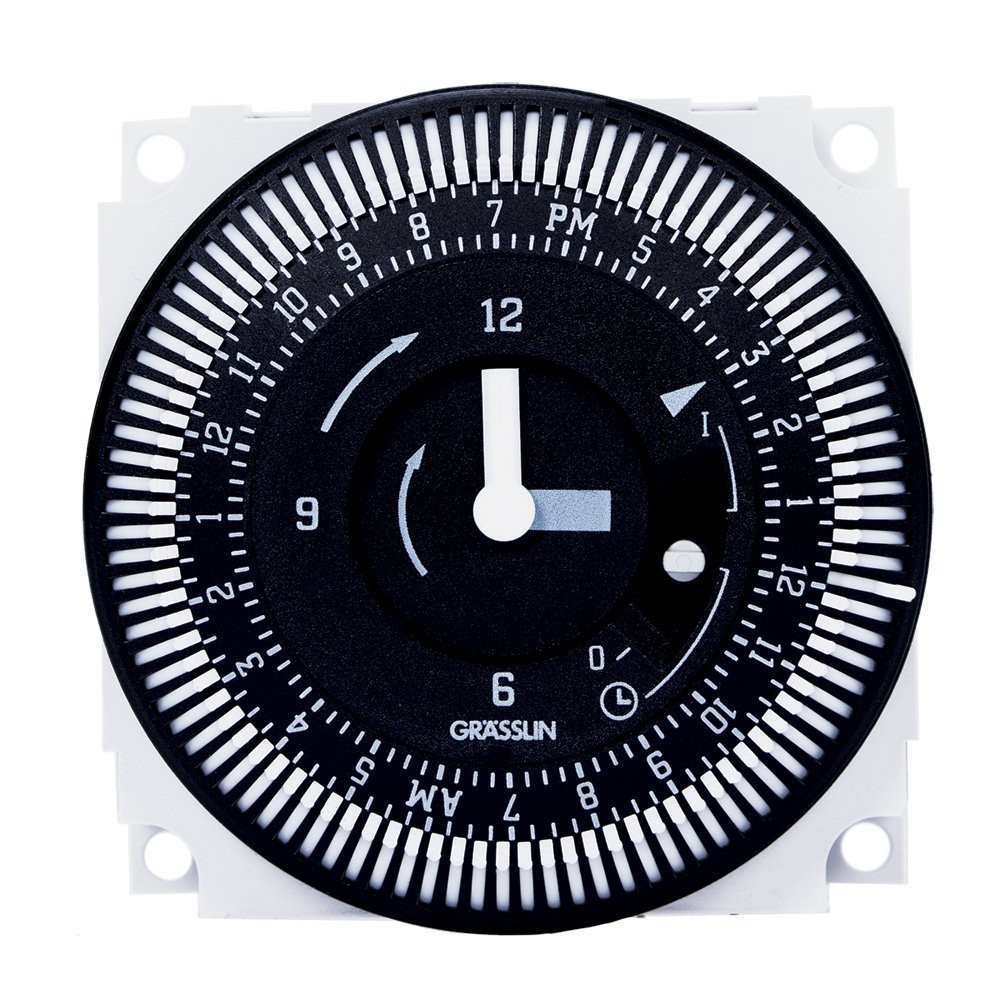

Grasslin FM/1 STUZH-L 01.76.0025.1 With Manual Override Switch (24 Hour) (240 Volt)

More Views

Grasslin FM/1 STUZH-L 01.76.0025.1 With Manual Override Switch (24 Hour) (240 Volt)
$50.00

Availability: In stock

White Plastic Case     Height: 2-1/2"
      Width: 2-7/16"
      Depth: 1-1/4" (Total including dial)
SPDT Switch Rating     21 Amp resistive, 250 VAC
Terminals     .250" spade terminals
Timer Motor Voltage     240 Volts
Timing Cycle     24 hour timer dial
      96 timer pegs- 15 min per peg
      Minimum On time - 1 hour
      Maximum On time - 23 hours
Agency Approval:     UL, CSA

Description

Details

The FM1/STUZ is used on a number of pool and spa controls and has numerous other industrial applications.

This is a 24 hour timer which may be used for multiple timing configurations. There are 96 individual trippers on the front dial. Each tripper controls a 15 minute section of the day. The on time is controlled by pulling each 15 minute tripper outward from the face.


There are a number of different models. This is 24 hour model with a timer motor requiring 240 volt AC input power. This model also includes a manual override switch on the front face.
The model number is shown on the back, 01.76.0025.1

Additional Information

Additional Information

Manufacturer Grasslin
Reviews
Product Reviews
Number of reviews : 1
Average rating : 1 /5
A. Anonymous
  the 01/11/2019
1/ 5
The timer never worked.
