Grasslin FM/1 STUZ 01.76.0094.1 (24 hour) (24 Volt)

Grasslin FM/1 STUZ 01.76.0094.1 (24 hour) (24 Volt)

More Views

$50.00

Availability: In stock

White Plastic Case    Height: 2-1/2"
   Width: 2-7/16"
   Depth: 1-1/4" (Total including dial)
SPDT Switch Rating    21 Amp resistive, 250 VAC
Terminals    .250" spade terminals
Timer Motor Voltage    24 Volts
Timing Cycle    24 hour timer dial
   96 timer pegs- 15 min per peg
   Minimum On time - 1 hour
   Maximum On time - 23 hours
Agency Approval:    UL, CSA

Qty:

Description

Details

The FM1/STUZ is used on a number of pool and spa controls and has numerous other industrial applications.

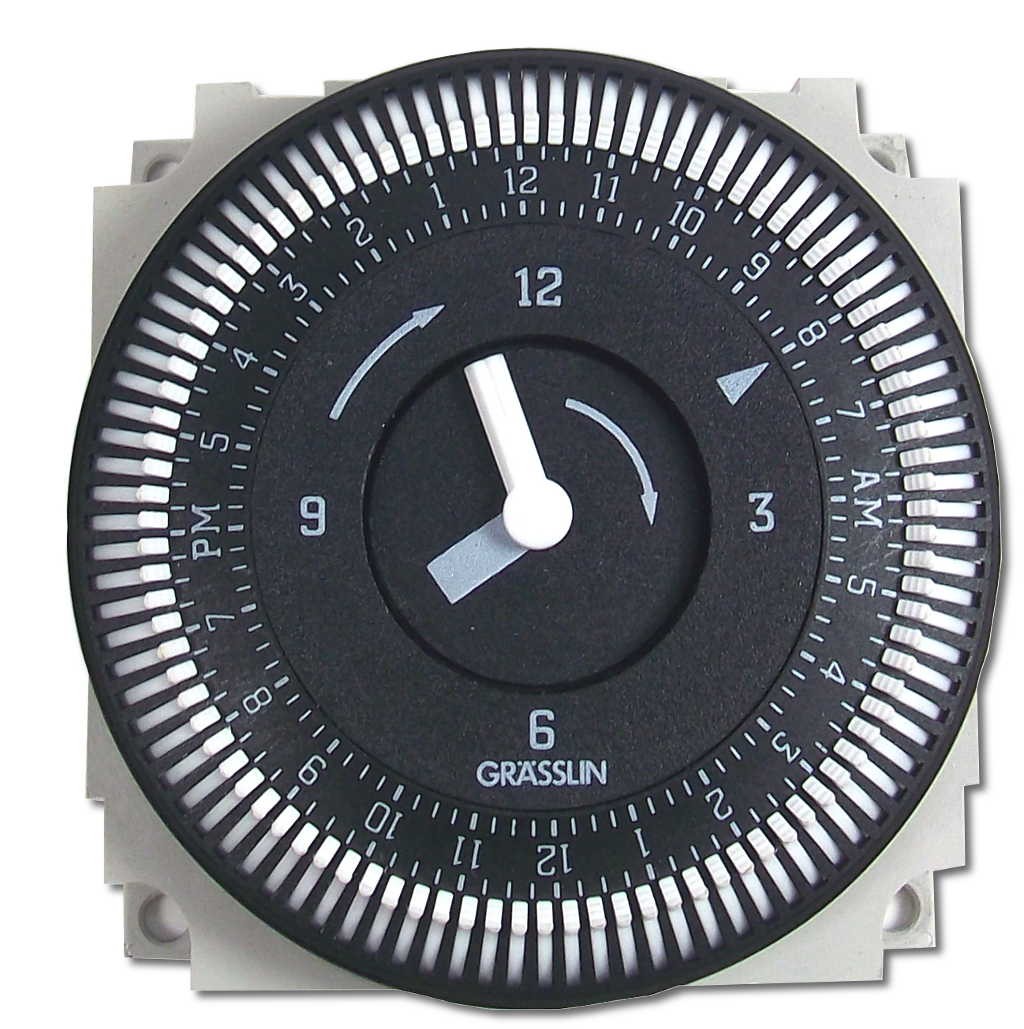

This is a 24 hour timer which may be used for multiple timing configurations. There are 96 individual trippers on the front dial. Each tripper controls a 15 minute section of the day. The on time is controlled by pulling each 15 minute tripper outward from the face.

There are a number of different models. This is the standard 24 hour model with a timer motor requiring 24 volt AC input power.
The model number is shown on the back, 01.76.0094.1
