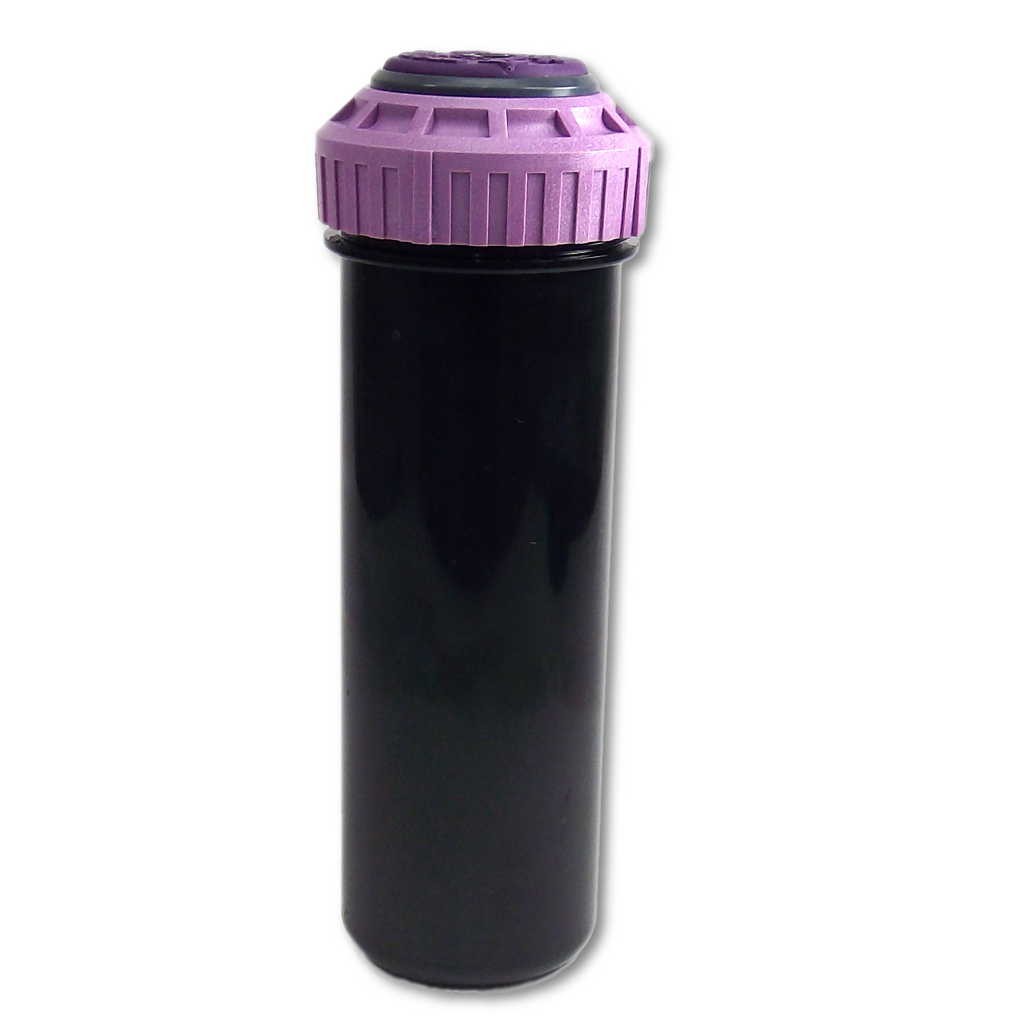

K-Rain RCW ProPlus Sprinkler Head

Features and Benefits

•     Revolutionary Patented Easy Arc Set – Simplified arc set allows for wet or dry adjustment in seconds
•     5" Riser – Perfect for grasses with thick thatch
•     ¾" Inlet – Replaces all standard rotors
•     2N1 Adjustable or Continuous Rotation - Provides a full range of adjustment from 40° to a continuous full circle.
•     Patented Arc Set Degree Markings – Clearly indicates the current watering pattern and simplifies arc set adjustment
•     Arc Memory Clutch – Prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced past its stop.
•     Time Proven Patented Reversing Mechanism - Assures continuous reverse and return...over a 20 year history.
•     Ratcheting Riser – Allows for easy adjustment of your left starting position with a simple turn of the riser.
•     Rubber Cover – Seals out dirt and increases product durability
•     Wide Selection of Nozzles - Including standard and low angle, provides flexibility in system design.
•     Check Valve with 11003-CV Model - Prevents low head drainage.

Specifications

•     Inlet: 3/4" Threaded NPT
•     Arc Adjustment Range: 40° to Continuous 360°
•     Flow Range: .5 - 10.0 GPM
•     Pressure Rating: 20 - 70 PSI
•     Precipitation Rate: .06 to .50 Inches Per Hour
•     (Depending on Spacing and Nozzle Used)
•     Overall Height (Popped Down): 7 1/2" / 17" for High Pop
•     Recommended Spacing: 28' to 44'
•     Radius: 28' to 50'free shipping
•     Nozzle Trajectory: 26°
•     Low Angle Nozzle Trajectory: 12°
•     Standard and Low Angle Nozzle: Included
•     Riser Height: 5"
