MDI Control Duty Mercury Float Switch – Normally Open – 30 Foot - (MDI CM1OY3000 TC-2 B)

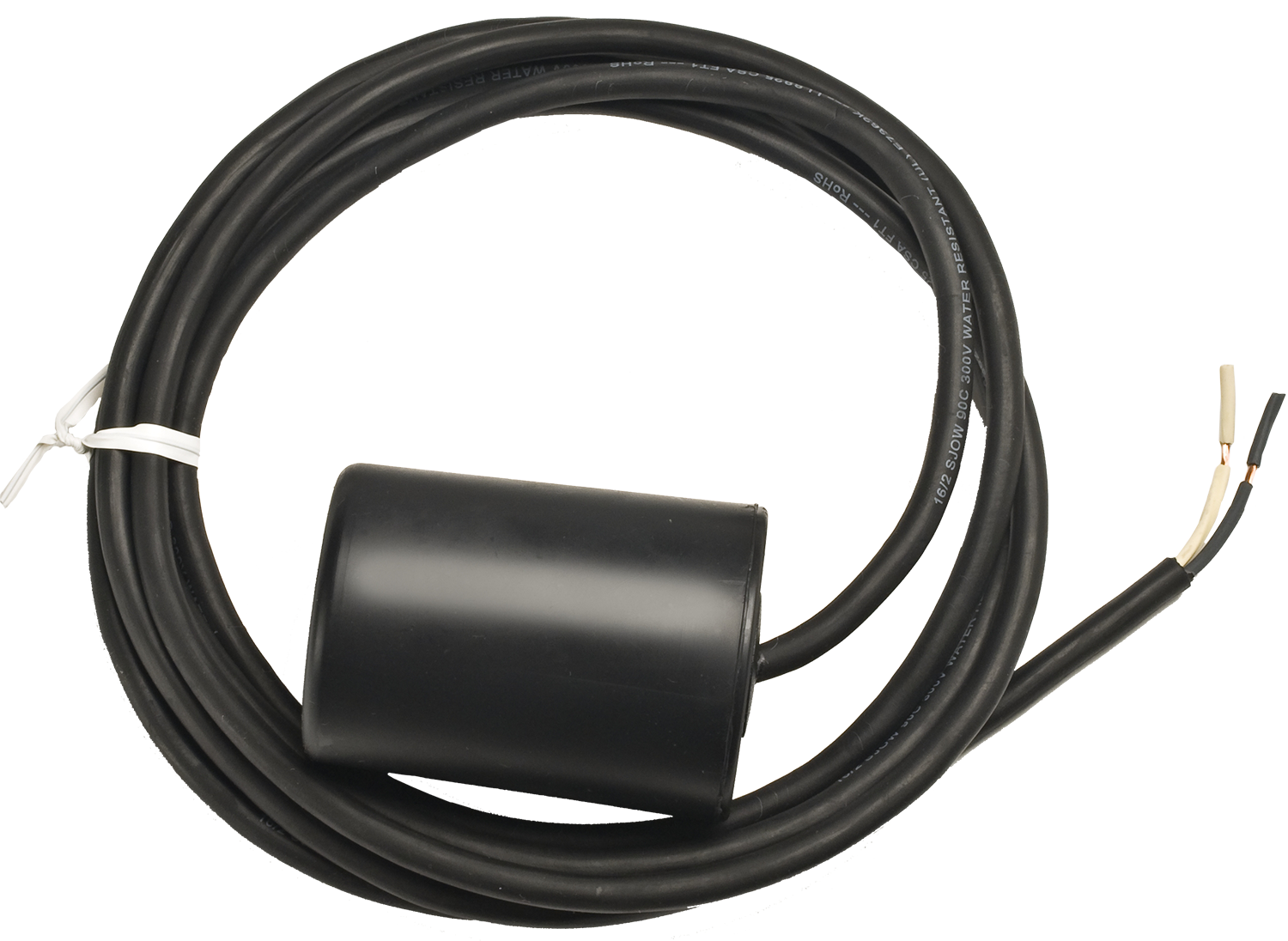

MDI Control Duty Mercury Float Switch – Normally Open – 30 Foot - (MDI CM1OY3000 TC-2 B)

More Views

$58.60

Availability: In stock

MDI (Mercury Displacement Industries) is manufacturer of high quality float switches. They are located in Michigan USA. MDI has been manufacturing high quality float switches for over 40 years. MDI float switches are made in the USA and are rated for millions of operations. All MDI basic units are UL, CSA, and CE approved. If you are looking for high quality float switches at an affordable price, MDI has the float for you

Qty:

Description

Details

Includes:

1 – MDI Float Switch
1 – TC-2 Tether Clamp With 3 ½ Inch Max Pipe Clamp

Float Specifications:

Part Number: CM1OY3000 TC-2 B
Operation: Normally Open
Operating Angle: Narrow Angle
Float Rating: Control
Electrical Ratings: 10 Amps @ 120VAC – 5 Amps @ 240 VAC
Cord Length: 30ft
Starting Amps (LRA): 34.8
Plug: No Plug
Switch Type: Mercury
Float Material: HIPS
Cord Gauge: 18-2 AWG
Operating Temperature: 140F/60C

Operation Explanation: Normally Open
Normally Open floats have an OPEN circuit when the float is in its normal position (Not Floating). Meaning the device that is hooked up to the float will turn ON when it is floating and turn OFF when it stops floating.

Additional Information

Additional Information

Manufacturer	MDI
Attachment	MDI CM1OYXX00.pdf Size: (29.45 KB)

Reviews

Product Reviews

Number of reviews : 2

Average rating : 5 /5

View the trust certificate

A. Anonymous

the 31/10/2019

5/ 5

So far works as expected.

A. Anonymous

the 07/11/2018

5/ 5

very good
