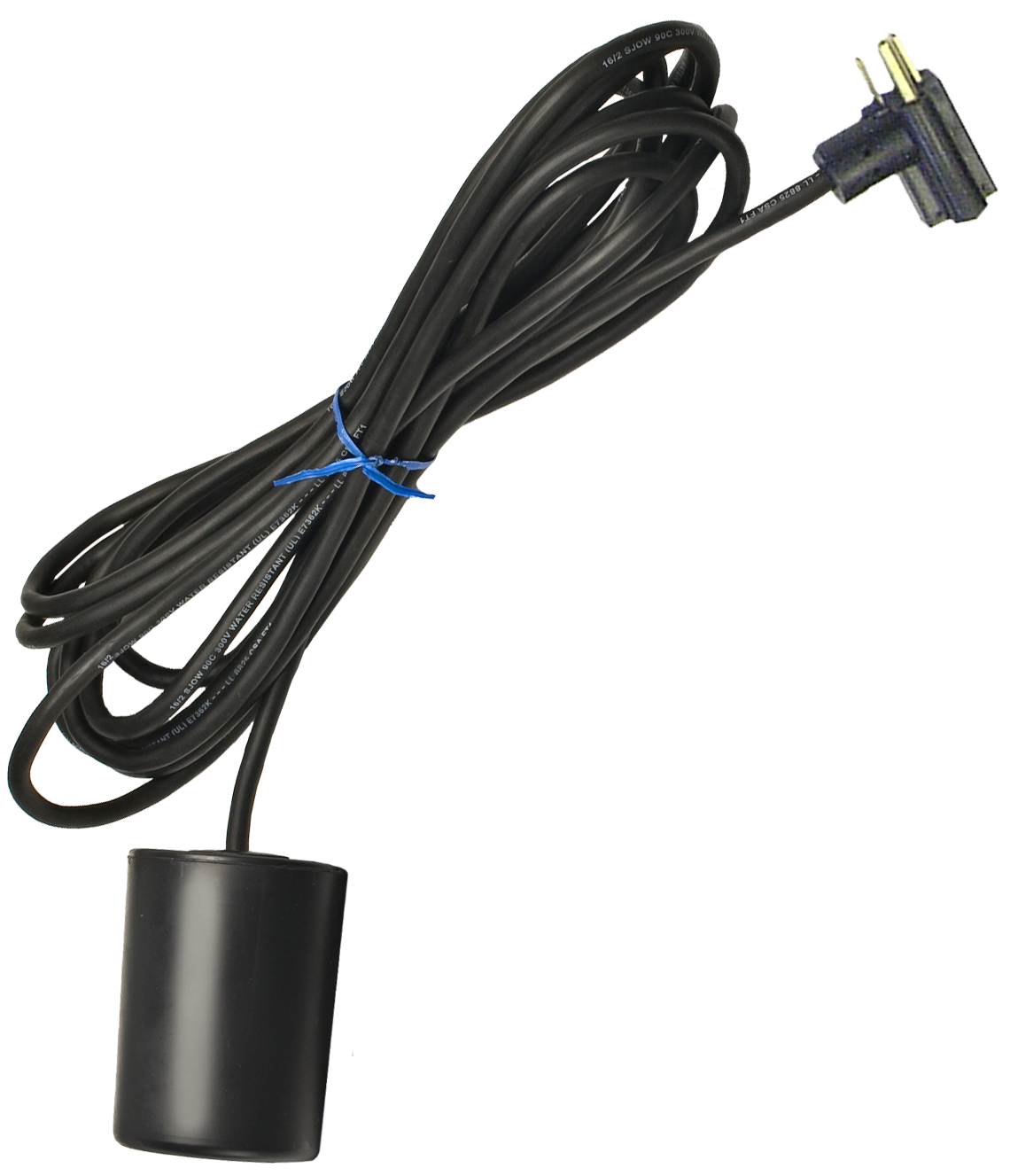

MDI Pump Duty Mercury Float Switch With Piggyback Plug – Normally Open – 30 Foot - (MDI EM1OW3001 TC-2 B)

More Views

MDI Pump Duty Mercury Float Switch With Piggyback Plug – Normally Open – 30 Foot - (MDI EM1OW3001 TC-2 B)
$59.00

Availability: In stock

MDI (Mercury Displacement Industries) is manufacturer of high quality float switches. They are located in Michigan USA. MDI has been manufacturing high quality float switches for over 40 years. MDI float switches are made in the USA and are rated for millions of operations. All MDI basic units are UL, CSA, and CE approved. If you are looking for high quality float switches at an affordable price, MDI has the float for you.

Description

Details

Includes:

  • 1 – MDI Float Switch
  • 1 – TC-2 Tether Clamp With 3 ½ Inch Max Pipe Clamp

Float Specifications:

  • Part Number: EM1OW3001 TC-2 B
  • Operation: Normally Open
  • Operating Angle: Wide Angle
  • Float Rating: ½ HP
  • Electrical Ratings: 13 Amps @ 120 VAC – 6 Amps @ 240 VAC
  • Cord Length: 30ft
  • Starting Amps (LRA): 43.2
  • Plug: 120V PiggyBack Plug
  • Switch Type: Mercury
  • Float Material: HIPS
  • Cord Gauge: 16-2 AWG
  • Operating Temperature: 140F/60C

Operation Explanation: Normally Open
Normally Open floats have an OPEN circuit when the float is in its normal position (Not Floating). Meaning the device that is hooked up to the float will turn ON when it is floating and turn OFF when it stops floating.

Additional Information

Additional Information

Manufacturer MDI
Attachment View File MDI EM1OW3001 TC-2 B Size: (20.76 KB)
Reviews
Product Reviews
Number of reviews : 2
Average rating : 5 /5
A. Anonymous
  the 02/02/2022
5/ 5
As described
A. Anonymous
  the 06/03/2021
5/ 5
A nice mercury float switch its not a pos mechanical one.
